New » Yamaha » Grizzly 700 FI Auto. 4x4
Model Quick Search

$8,199.00

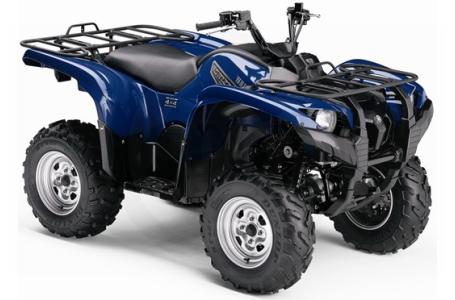

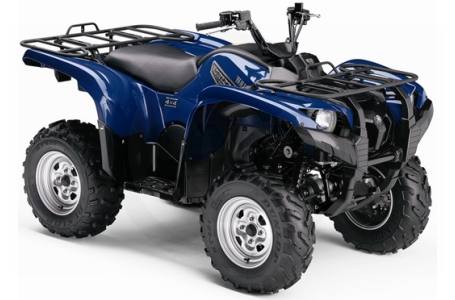

2007 Yamaha Grizzly 700 FI Auto. 4x4


Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Ultimate Grizzly. More big-bore power, more tough terrainablility, and more comfort than ever. The new, fuel-injected Grizzly 700 Fi features an industry-exclusive electric power steering system that makes it not just the toughest Grizzly ever, but also the smoothest-riding.

    Key Features
    • Most powerful Grizzly ever: 686cc liquid-cooled, four-stroke engine and light weight add up to the best power-to-weight ratio of any utility model in the industry.
    • Fuel injection means instantaneous cold starts and optimal performance in all conditions and all altitudes.
    • Industry-exclusive: Electronic Power Steering (EPS) system lightens steering and helps ease feedback, for superior comfort and terrainability.
    • Industry-exclusive: fully automatic Ultramatic® transmission is the most advanced drive system in ATVing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and industry-exclusive all-wheel downhill engine braking.
    • Industry-exclusive: three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD— all with the simple push of a button.
    • Fully independent long-travel four-wheel suspension features double wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and riding Grizzly ever.
    • Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeters, hour meter, 4WD status, transmission position, clock and fuel gauge.
    Engine
    • New, Raptor-based four-valve combustion chamber design produces a potent combination of low-rev torque, right-now throttle response and high horsepower.
    • Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
    • Fuel injection provides a perfect fuel/air mixture regardless of temperature or altitude, and makes cold starts a snap.
    • Gear-driven crankshaft balancer shaft and new-design rubber-damper engine mounts reduce vibration.
    • Ceramic-composite cylinder liners provide outstanding durability and heat dissipation; forged piston is light and strong and rides a carburized, chrome-moly connecting rod.
    • Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
    • Mikuni fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any conditions.
    • Pushbutton electric starting with seven-disk torque-limiting damper assembly to protect the starter motor.
    • Straight driveshaft layout eliminates U-joints for reduced friction, vibration and maintenance.
    • Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
    • High-capacity aluminum radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
    • Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
    • Five-position shift lever with H, L, N, R and P gates for positive Ultramatic trans operation.
    • Override button allows engine to make maximum RPM in full Diff Lock mode.
    • Electronic servo-activated 2WD/4WD/Diff Lock via the On-Command system.
    • Sealed drive case keeps out water and debris to help prevent belt from slipping.
    Chassis/Suspension
    • All-new chassis provides fantastic comfort along with outstanding handling and maneuverability.
    • New, lay-down style front suspension A-arms provide outstanding ground clearance.
    • Five-way preload adjustable shocks provide a controlled, comfortable ride whatever the load or trail conditions.
    • Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power under all sorts of nasty conditions.
    • Electronic power steering varies assist according to speed and RPM for increased comfort and incredible maneuverability—even in 4WD.
    • 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter waterproof storage compartment under there too.
    • 11.8 inches of ground clearance and full-length composite skid plate deliver maximum underbelly protection while enhancing terrainability.
    • New 25x8-12 front and 25x10-12 rear Dunlop tires provide responsive steering and handling and excellent comfort.
    • Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.
    Additional Features
    • New-design LCD instrument display contains fuel injection and electronic power steering information as well as bar-type fuel gauge, odometer, tripmeter, clock and Diff Lock indicator.
    • An analog speedometer shows your velocity at a glance.
    • Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
    • Center-mounted, heavy-duty trailer hitch comes standard and can tow over 1200 pounds.
    • Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
    • Dual 30-watt multireflector Halogen bulb headlights with high/low beams light up the night.
    Engine Specifications
    • Type: 686cc liquid-cooled w/fan, SOHC four-stroke single; 4-valve
    • Bore x Stroke: 102mm x 84mm
    • Compression Ratio: 9.2:1
    • Carburetion: Yamaha Fuel Injection (YFI), 44mm
    • Ignition: 32 Bit ECU
    • Starting System: Electric
    • Transmission: Yamaha Ultramatic® V-belt/H, L, N, R, P
    • Engine Braking: All wheel
    • Drive Train: Yamaha On-Command® pushbutton 3-way locking differential, 2WD, 4WD, locked 4WD; shaft
    Chassis Specifications
    • Suspension/Front: Independent double wishbone, 7.1” travel w/5-way preload adjustment
    • Suspension/Rear: Independent double wishbone, 9.5” travel w/5-way preload adjustment
    • Brakes/Front: Dual hydraulic disc
    • Brakes/Rear: Dual hydraulic disc
    • Tires/Front: AT25 x 8-12 w/aluminum wheels
    • Tires/Rear: AT25 x 10-12 w/aluminum wheels
    Dimensions
    • L x W x H: 81.3" x 46.5" x 48.8"
    • Seat Height: 35.6"
    • Wheelbase: 49.2"
    • Turning Radius: 126"
    • Ground Clearance: 11.8"
    • Fuel Capacity: 5.3 gal.
    • Dry Weight: 602 lb.
    • Rack Capacity: 99 lb. front/187 lb. rear
    • Towing Capacity: 1212 lb.
    Other
    • Instrumentation: Digital LCD multifunction display: speedometer, odometer, dual trip, hour meter, clock, fuel, gear position
    • Lighting: Dual 35W Halogen multireflector headlights & 21/5W brake light
    NOTES:

    ATVs with engines of 49cc to 70cc are recommended for use only by riders age 6 years and older, and always with adult supervision. ATVs with engines of 70cc to 90cc are recommended for use only by riders age 12 years and older, and always with adult supervision. • ATVs with engines 90cc or greater are recommended for use only by riders age 16 years and older. • Yamaha recommends that all ATV riders take an approved training course. For safety and training information, see your dealer or call the ATV Safety Institute at 1-800-887-2887. • ATVs can be hazardous to operate. For your safety: Always avoid paved surfaces. Never ride on public roads. Always wear a helmet, eye protection and protective clothing. Never carry passengers. Never engage in stunt riding. Riding and alcohol/drugs don’t mix. Avoid excessive speed. And be particularly careful on difficult terrain. There are few joys in life equal to the free-spirited thrill and experience of ATV riding. And that’s why it’s important for all of us to do our part as responsible riders. By following logical, common-sense rules, we can maintain season after season of unparalleled enjoyment of our sport. • Please remember to “tread lightly.” Always ride in a responsible manner, respecting the environment as well as all state and local laws. Specifications subject to change without notice. All ATVs come with a 6-month Limited Factory Warranty. See your dealer for details.


    Specifications

    Engine
    Engine Type SOHC four-stroke single; 4-valve
    Displacement 686 cc
    Bore x Stroke 102mm x 84mm
    Cylinders 1
    Engine Cooling Liquid-cooled w/ fan
    Fuel System Yamaha Fuel Injection (YFI), 44mm
    Starting System Electric
    Chassis
    Front Suspension Independent double wishbone
    Front Travel 7.1” travel w/5-way preload adjustment
    Front Brake Type Dual hydraulic disc
    Front Tires AT25 x 8-12 w/aluminum wheels
    Rear Travel 9.5” travel w/5-way preload adjustment
    Rear Suspension Independent double wishbone
    Rear Brake Type Dual hydraulic disc
    Rear Tires AT25 x 10-12 w/aluminum wheels
    Dimensions/Capacities
    Dry Weight 602 lbs. (272 kg)
    Front Rack Capacity 99 lbs.
    Rear Rack Capacity 187 lbs.
    Towing Capacity 1212 lbs.
    Fuel Capacity 5.3 gal. (20 l)
    Ground Clearance 11.8 in. (300 mm)
    Machine Dimensions (LxWxH) 81.3" (2,065 mm) x 46.5" (1,180 mm) x 48.8" (1,240 mm)
    Wheelbase 49.2 in. (1,250 mm)
    Drive Train
    Drive Train Yamaha On-Command® pushbutton 3-way locking differential, 2WD, 4WD, locked 4WD; shaft
    Transmission Yamaha Ultramatic® V-belt/H, L, N, R, P
    General
    Speedometer Standard: Digital LCD multifunction display
    Odometer Standard: Digital LCD multifunction display
    Lighting Dual 35W Halogen multireflector headlights & 21/5W brake light
    Colors Hunter Green, Steel Blue, Red, and Hardwoods HD Camo
    Warranty 6-month Limited Factory Warranty
